Trapezoidal Metal Roof Mounting Railless Solution

Product Name: Trapezoidal Metal Roof Mounting Railless Solution

Product Brief Introduce:

Installation site: trapezoid metal roof or sandwich roof
Application: Framed solar panel for any size
Structural materials: Aluminum
Survival wind speed: up to 60m / s
Design snow pressure: up to 1.4KN / m2
Inclination: 0 degree (the same angle as roof)
Panel direction: vertical or landscape
Quality assurance for 10 years

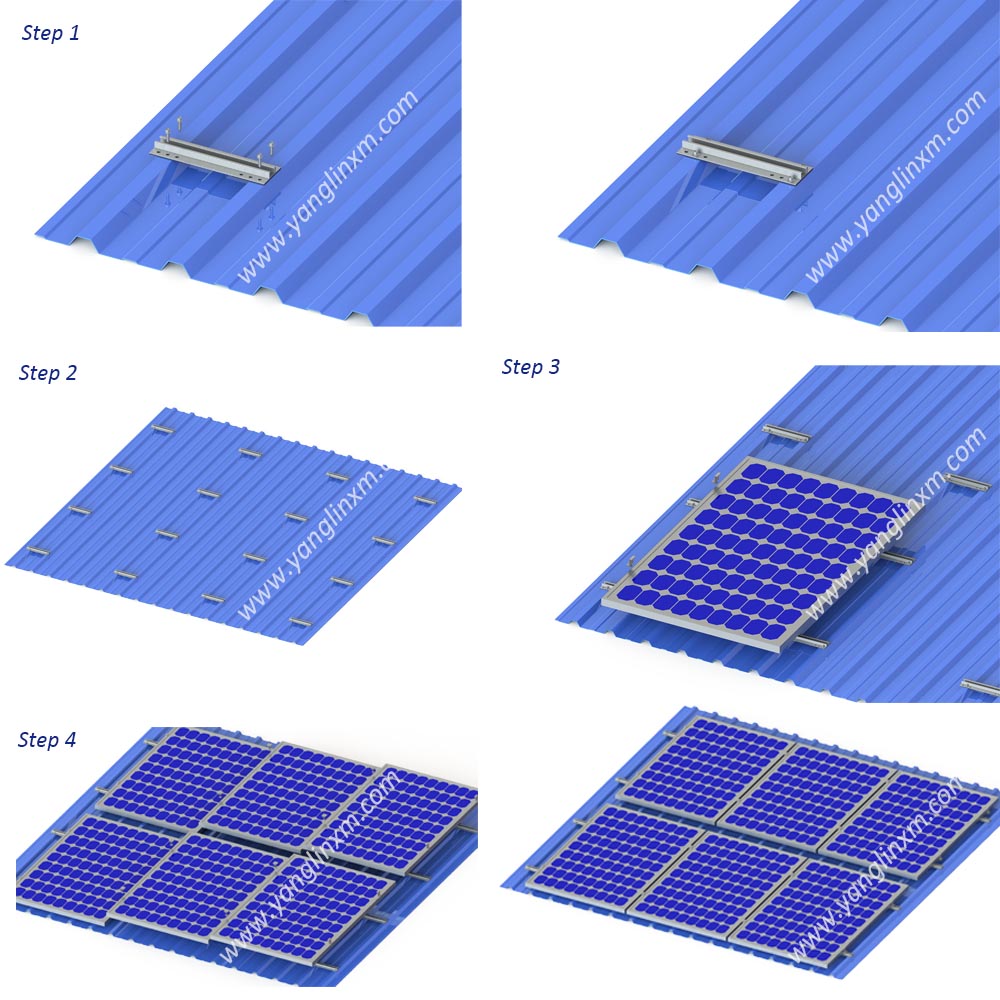

Installation Guide:

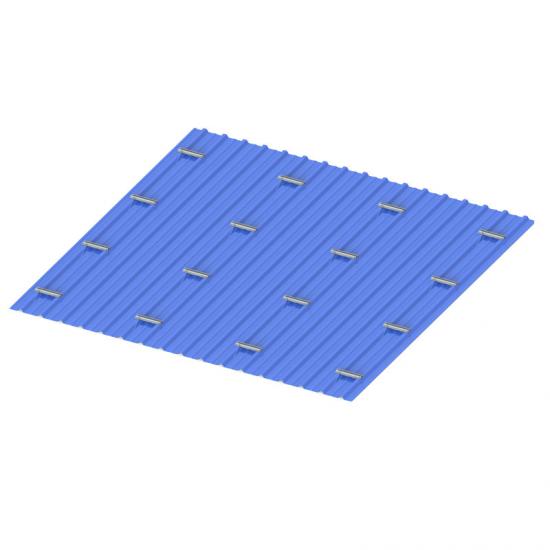

Step 1: Install railless clamp hook on roofing as per technical drawing.

Step 2: Install railless clamp hook one by one.

Step 3: Fix solar panel on railless clamp hook by mid clamp or end clamp.

Step 4: Fix solar panel one by one until finished.

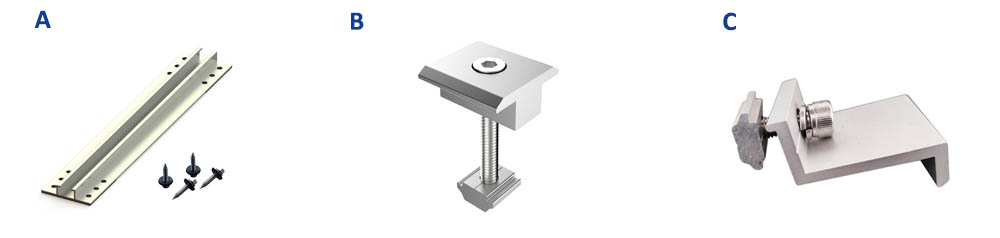

Components List:

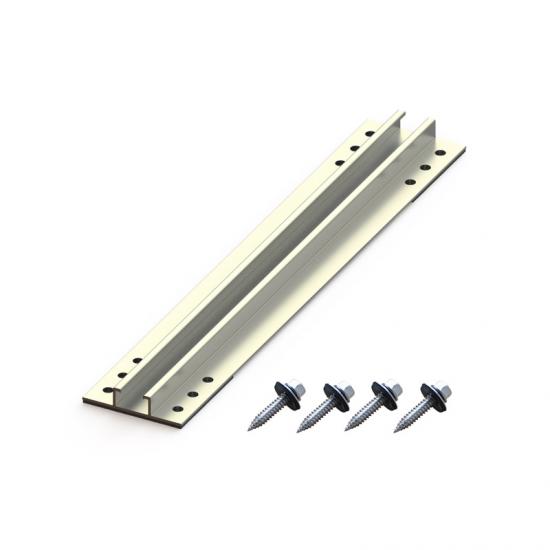

A: Railless clamp hook

B: Mid clamp

C: End clamp
