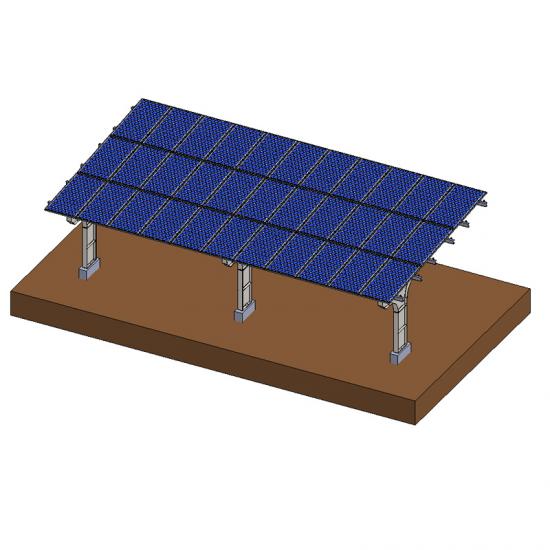

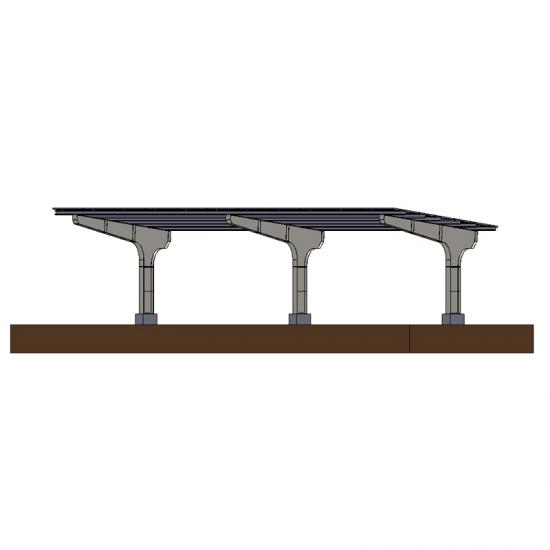

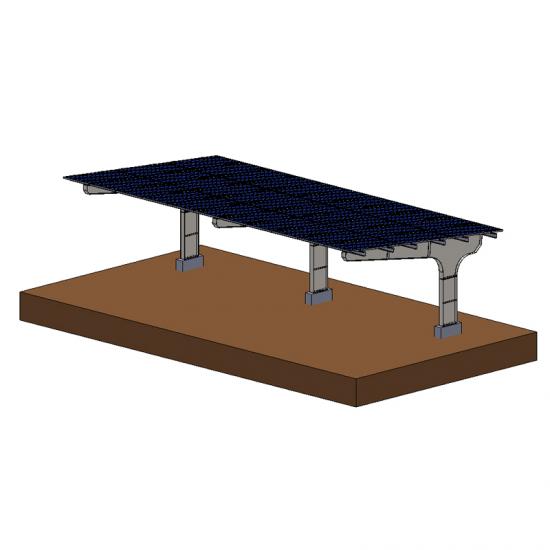

Galvanized steel residential solar carport mounting system

Product Name: Galvanized steel residential solar carport

Product Description:

Sunpanelution residential solar carport is configured with one or two car spaces between two colums support, it can design single, double or continue as your need. It can be applicated for commercial or residential installation. The whole structure is made of high strength galvanized steel and the fastener is 304SS. Solar carport structure accessories is hot dip galvanized steel rail, rail clamp, solar clamp and steel column support.

Brief Introduce:

Install Site: Open Filed
Module Tilt Angle: 5-20 degree
Max Wind Speed: 60 m/s
Snow Load: 1.4 KN/m²
Material: Hot dipped galvanized steel (Q235)
Foundation: Concrete block
Carport Spots: 1 lot, 2 lots, 3 lots, 4 lots, etc are all available.

Installation Guide:

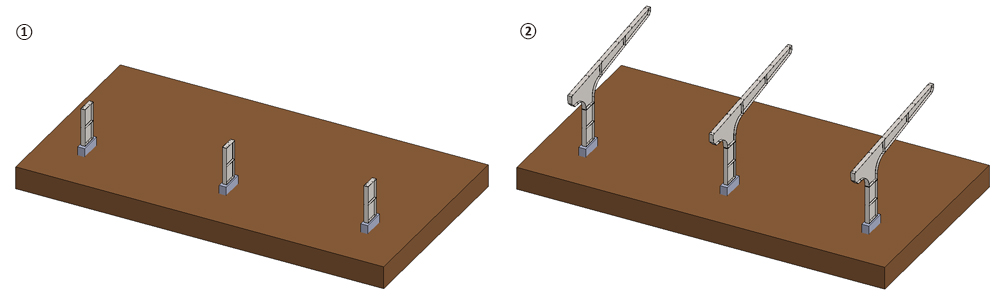

Step 1: Fix down suppport on concrete block as per technical drawing requirement.

Step 2: Fix upper support on down support by bolt.

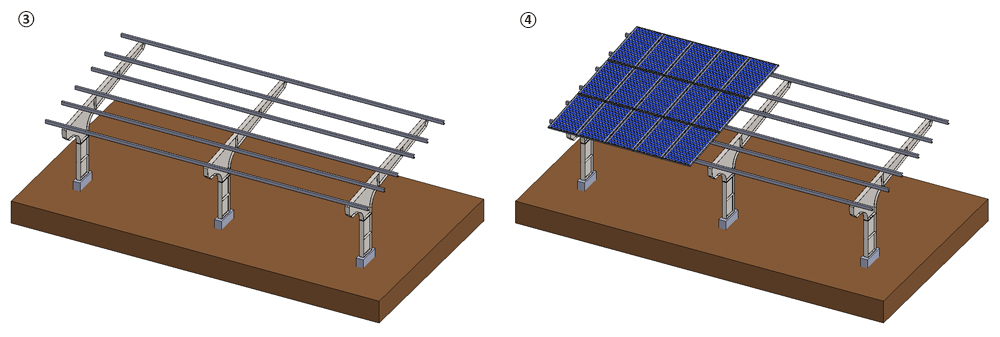

Step 3: Fix rail on support.

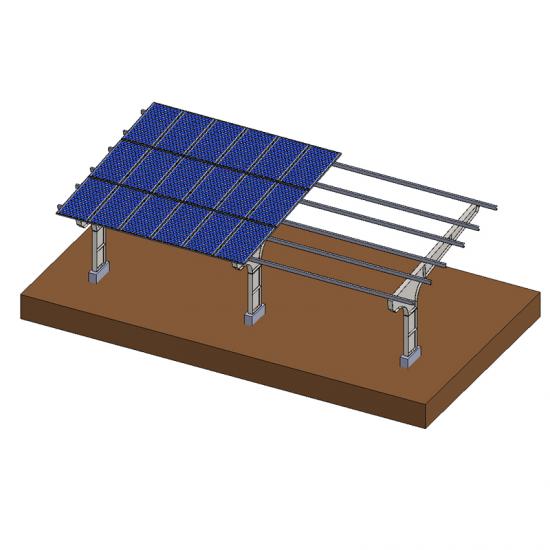

Step 4: Fix panel on rail until finished.
