Flat roof ballasted mounting system

Product Name: Flat roof ballasted mounting system

Product Description:

Sunpanelution Ballasted Mounting System is very easy to install without any risk of roof failure. It can be used to install framed or frameless solar modules. Sunpanelution mounting system bracket has been made PV projects of flat roofs more durable, economical and reliable.

Brief Introduce:

Light Weight, Convenient and Durable.
Install Site: Flat Concrete Roof or Open Filed
Max Building Height: Up to 20m(≈65ft).
Max Wind Speed: 60 m/s
Snow Load: 1.4 KN/m²
Material: Aluminum 6005-T5 & Stainless Steel 304
Warranty: 10 years warranty; 25 years service life.

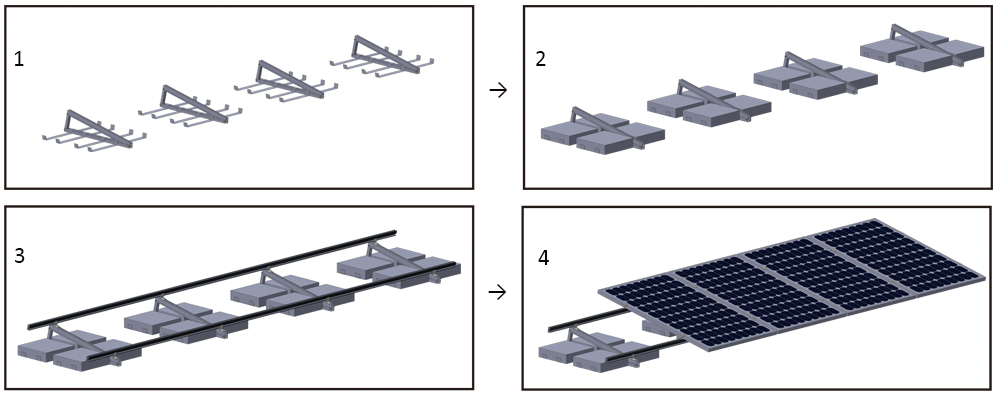

Installation Guide:

Step 1: Fix tripod bracket on flat roof and put ballast pan on bracket.

Step 2: Put concrete block on ballast pan.

Step 3: Fix solar rail on tripod bracket.

Step 4: Fix solar panel on rail.

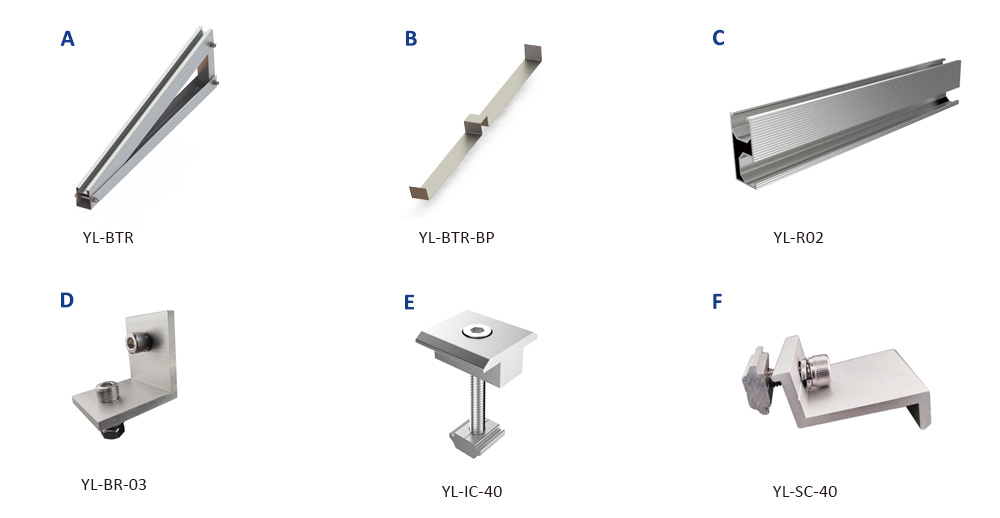

Components List:

A: Ballasted Tripod Bracket

B: Ballasted pan

C: Alu roof rail

D: Rail Clamp

E: Mid clamp

F: End clamp
