Galvanized steel solar pile ground mounting system

Product Name: Solar pile ground mounting system

Product Description:

Sunpanelution Pole Solar Ground Mounting System is applicable for open field. It is designed for easy installation and lowing labor cost. This pole ground solar mounting system can be applied to large commercial scale installations. Structure is made by hot dipped galvanized steel.

Brief Introduction:

Install Site: open ground field
Module Tilt Angle: 5-40 degree
Max Wind Speed: 60 m/s
Snow Load: 1.4 KN/m²
Material: hot dipped galvanized steel

Installation Guide:

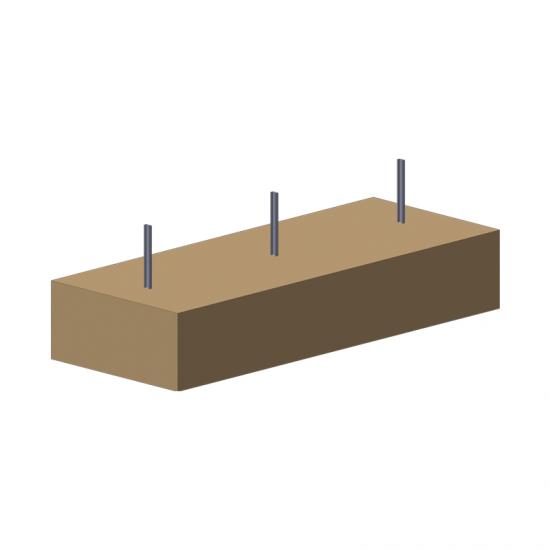

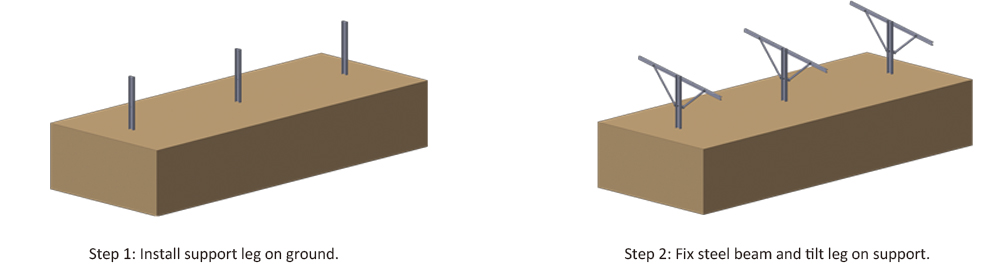

Step 1: Install support leg on ground.

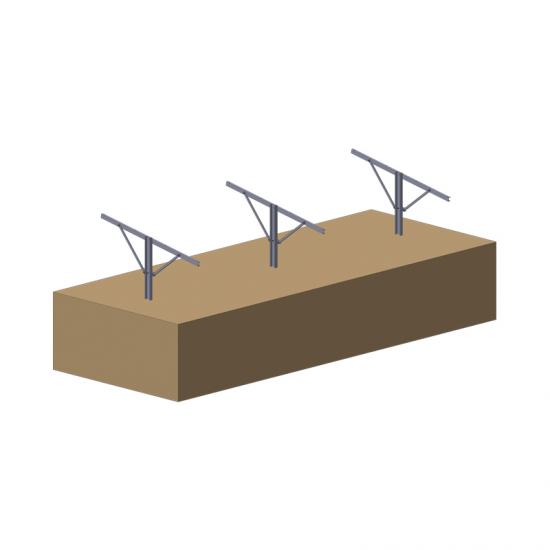

Step 2: Fix steel beam and tilt leg on support.

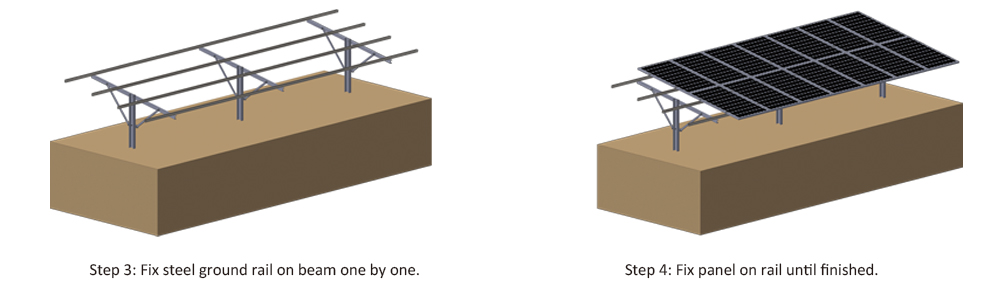

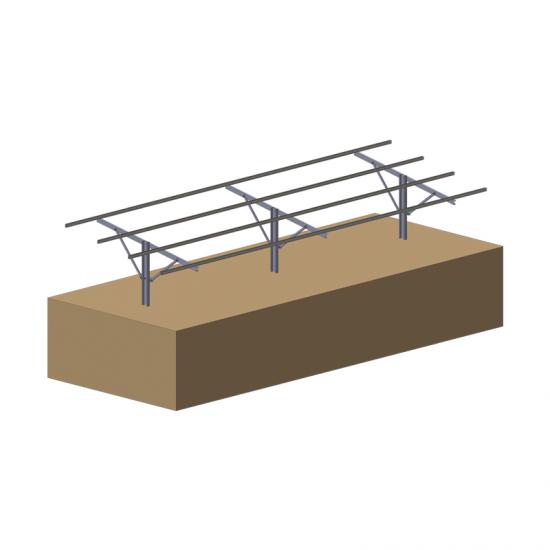

Step 3: Fix steel ground rail on beam one by one.

Step 4: Fix panel on rail until finished.

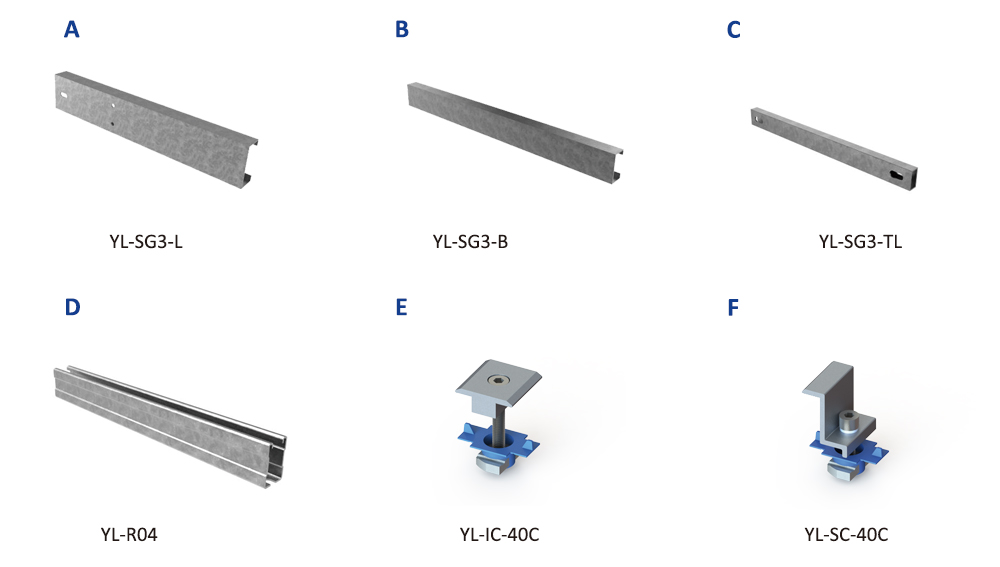

Components List:

How to get a quotation?

In order to provide most appropriate quotation with detail solution, please give us as follow details in advance:
1: Your solar panel dimension and total quantity;
2: Panel layout plan;
3: Panel tilt angle with horizontal;
4: Project local wind load and snow load that you need mounting system can resist;
5: Ground clearance (lowest distance between panel and ground)
