AG6 N Type Ground Mounting for Slope Area

Product Description:

Sunpanelution Alu Ground Mounting is applicable for open field, it can be installed for residential or commercial project. High pre-assembled makes install efficient and easy. The structure is made by high quality Aluminum alloy.

Brief Introduction:

Install Site: Open Filed
Module Tilt Angle: 5-40 degree
Max Wind Speed: 60 m/s
Snow Load: 1.4 KN/m²
Material: Aluminum 6005-T5
Foundation: Ground screw or concrete block
Warranty: 10 years warranty; 25 years service life.

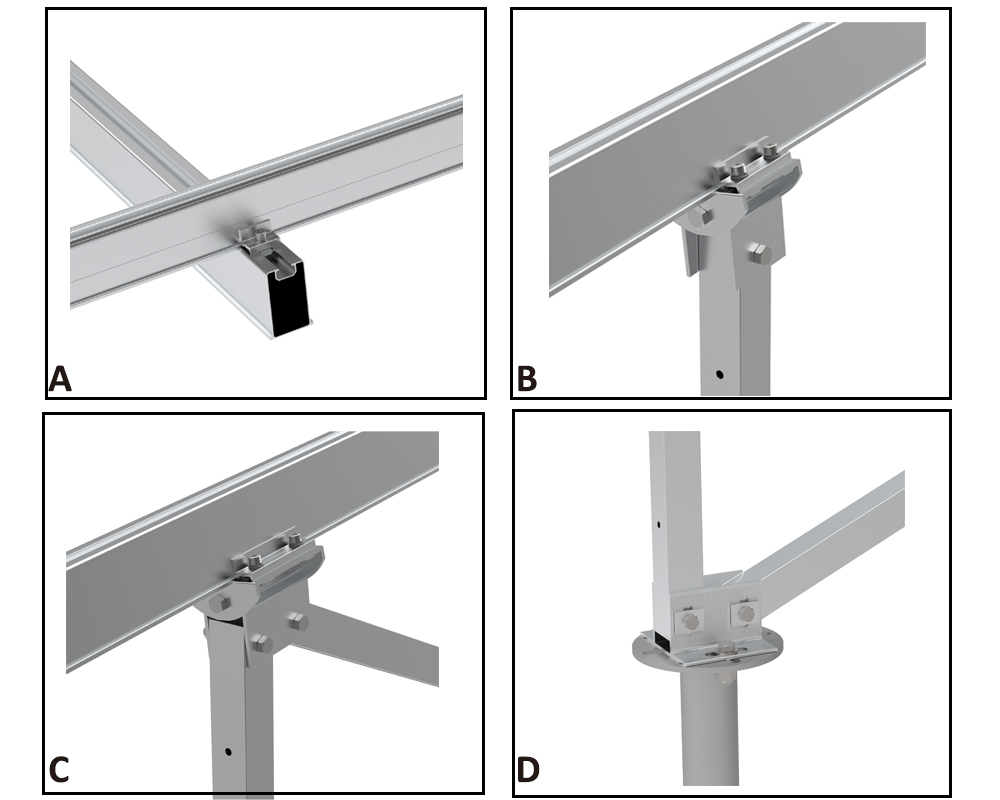

Detail of Structure:

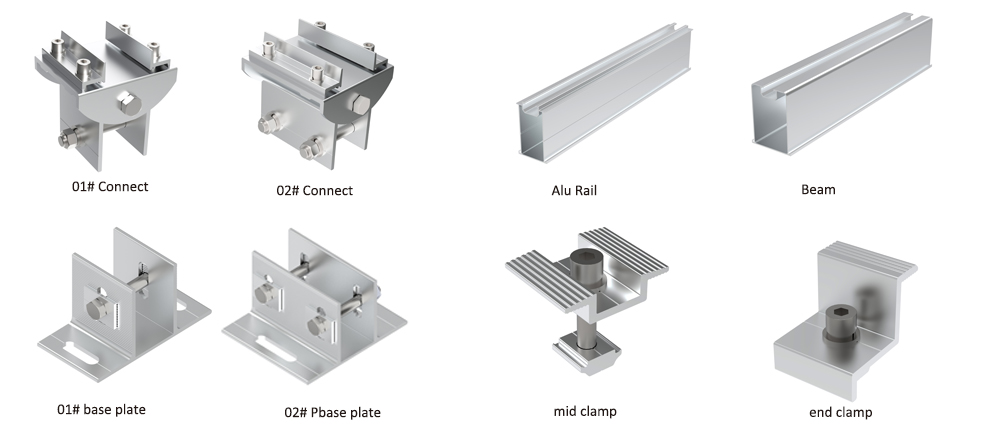

Components List:

How to get a quotation

In order to provide most appropriate quotation with detail solution, please give us as follow details in advance:
1: Your solar panel dimension and total quantity;
2: Panel layout plan;
3: Panel tilt angle with horizontal;
4: Project local wind load and snow load that you need mounting system can resist;
5: Ground clearance (lowest distance between panel and ground)
