Aluminum solar carport mounting structure

Product Name: Aluminum solar carport mounting structure

Product Description:

Sunpanelution Solar carport can be applicated for commercial or residential installation. The whole structure is made of high strength extruding Aluminum alloy and the fastener is 304SS. We offer customized service for single, double, triple, four or N carports together to meet your request.

Brief Introduce:

Install Site: Open Filed
Module Tilt Angle: 5-20 degree
Max Wind Speed: 60 m/s
Snow Load: 1.4 KN/m²
Material: Aluminum 6005-T5 & SUS304
Foundation: Concrete block
Carport Spots: Customized
Warranty: 10 years warranty; 25 years service life.

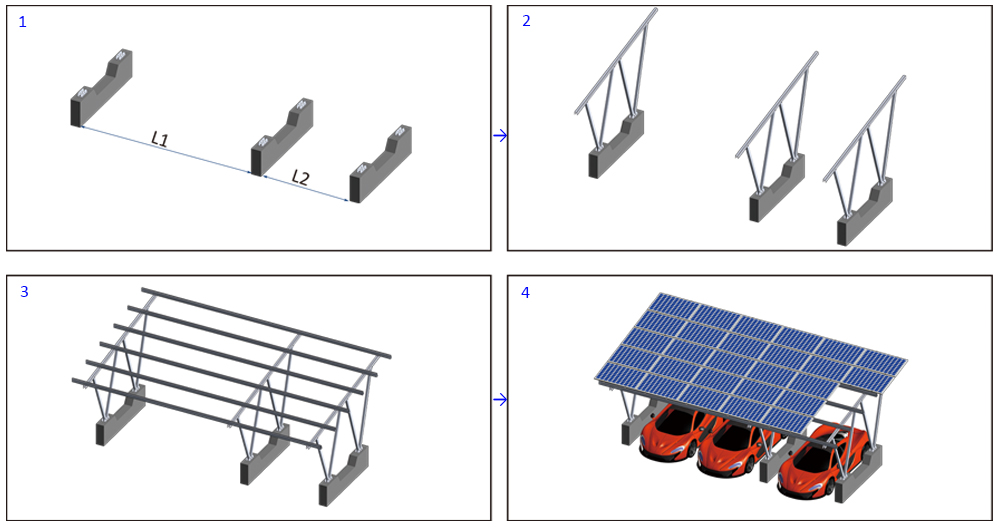

Installation Guide:

Step 1: Fix concrete block as per technical drawing requirement and fix foundation base on block.

Step 2: Fix pre-assembled beam.

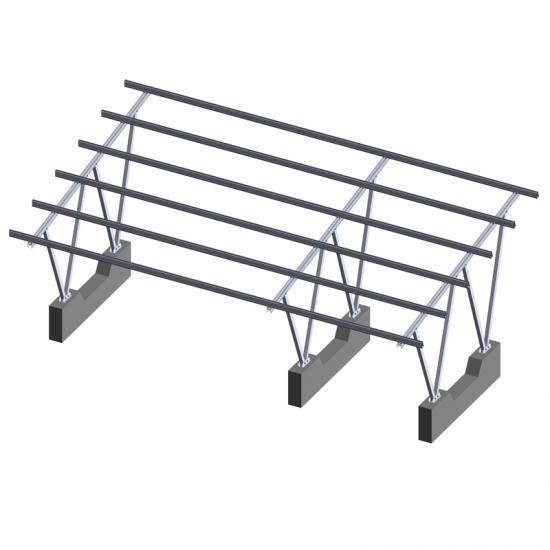

Step 3: Fix rail on beam.

Step 4: Fix panel on rail until finished.

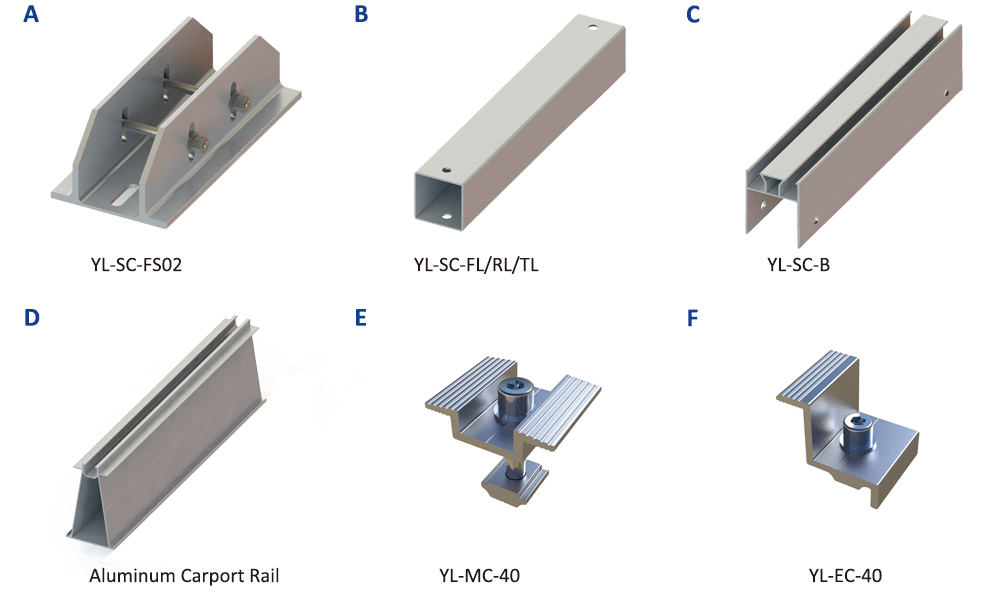

Components List:

A: Foundation base

B: Front leg, rear leg, tilt leg

C: Aluminum beam

D: Aluminum solar carport rail

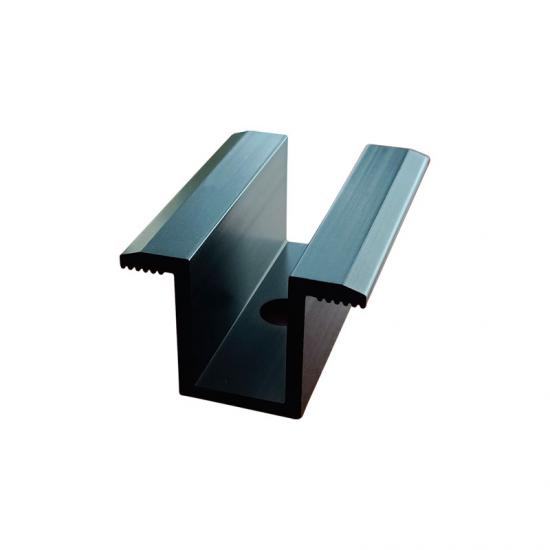

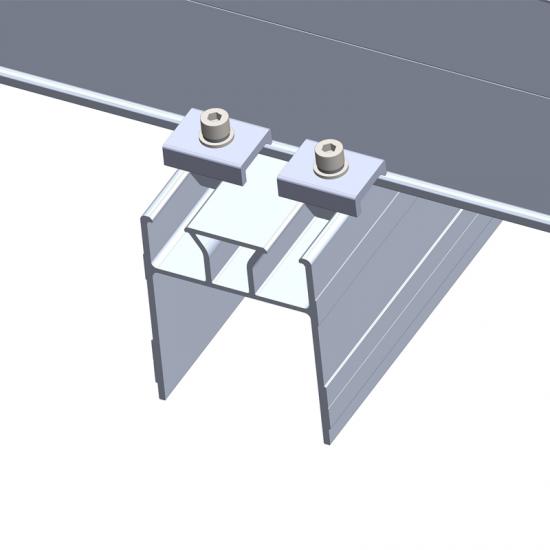

E: Middle clamp

F: End clamp

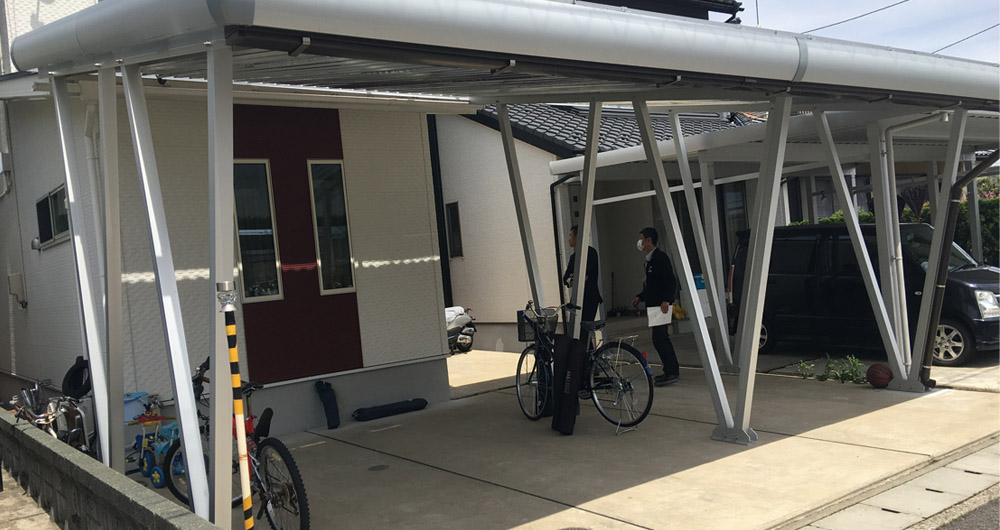

Project:
