Railless roof mounting system

Product Name: Railless roof mounting system

Product Description:

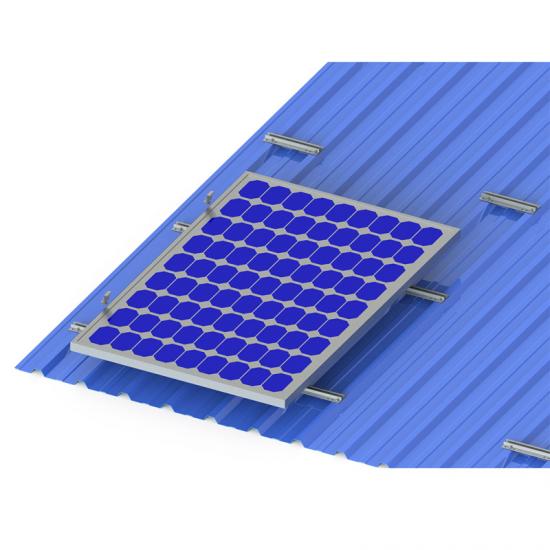

Sunpanelution Railless Roof Mounting is designed for trapezoid steel roofing sheet. It can be fixed on roof directly without Alu rail, the installation is easy and convenient.

Brief Introduce:

Install Site: Trapezoid tin roof

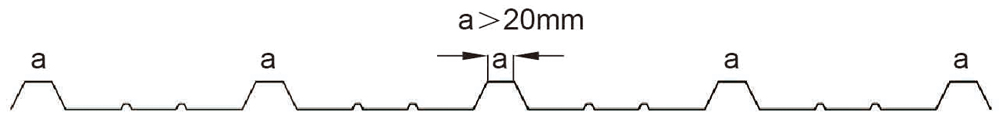

Require: “a“ should ≥20mm
Max Building Height: Up to 20m(≈65ft).
Material: Aluminum 6005-T5
Warranty: 10 years warranty; 25 years service life.

Installation Guide:

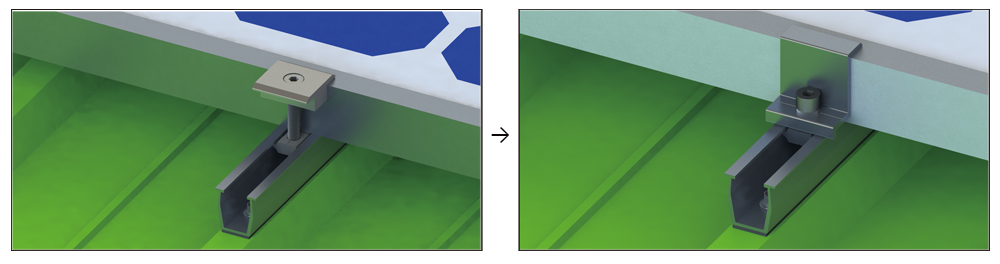

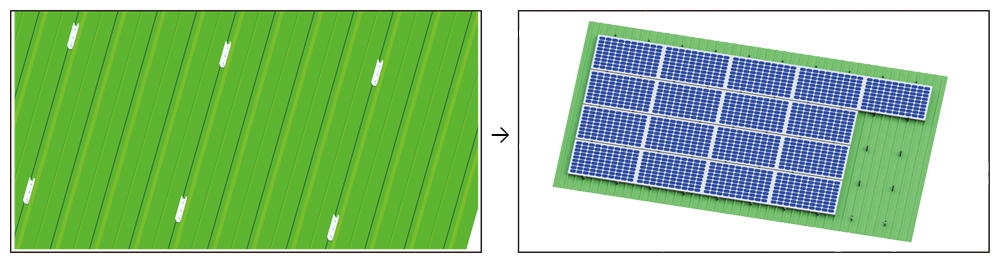

Step 1: Install railless clamp hook on roofing as per technical drawing.

Step 2: Fix solar panel on railless clamp hook until finished.

Detail:

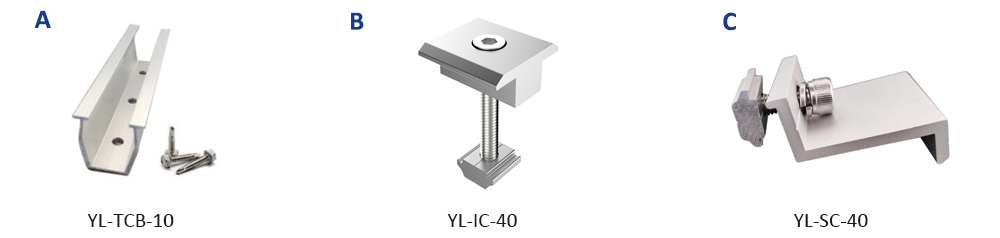

Components List:

A: Railless clamp hook

B: Mid clamp

C: End clamp

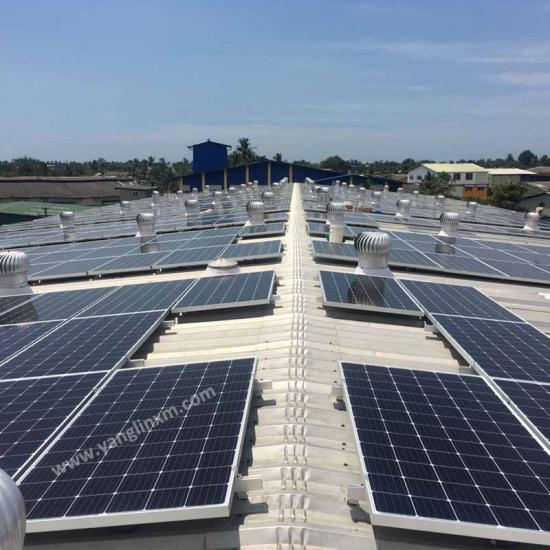

Project:
