Product Description:
Sunpanelution Pitched Tile Roof Mounting is suitable for installing framed or frameless modules flushed to pitch roof. Special design and pre-assembled clamp make installation easy, as follow are some advantage:
Feature:
Light Weight, Convenient and Durable.
Install Site: Pitch Tile Roof
Max Building Height: Up to 20m(≈65ft).
Max Wind Speed: 60 m/s
Snow Load: 1.4 KN/m²
Material: Aluminum 6005-T5 & Stainless Steel 304
Warranty: 10 years warranty; 25 years service life.

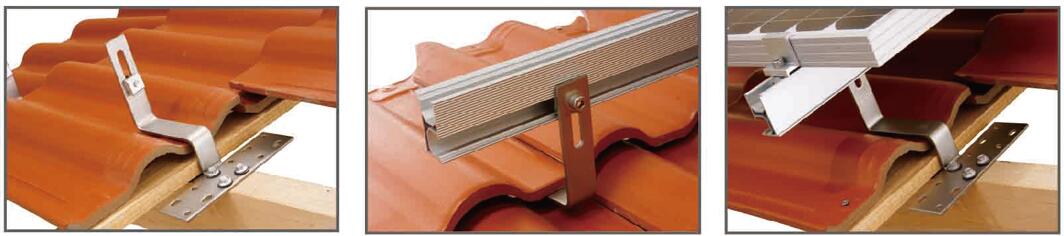

Installation Guide:
Step 1: Remove tile and fix tile hook on beam by M6.3 x 80mm wood screw.
Step 2: Fix solar rail on tile hook and lock tightly by M8x25mm T module set.
Step 3: Put solar panel on rail and fix with inter clamp or end clamp until finished.

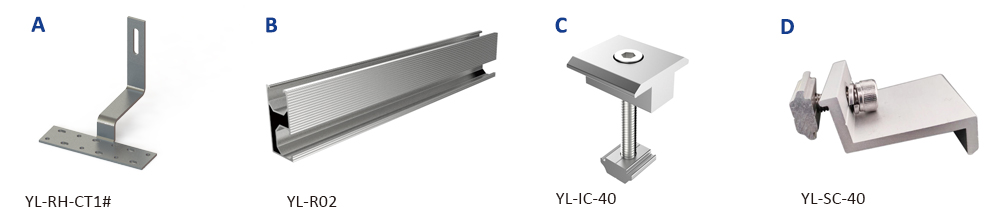

Compnents List:
